| Category | Descriptions | |

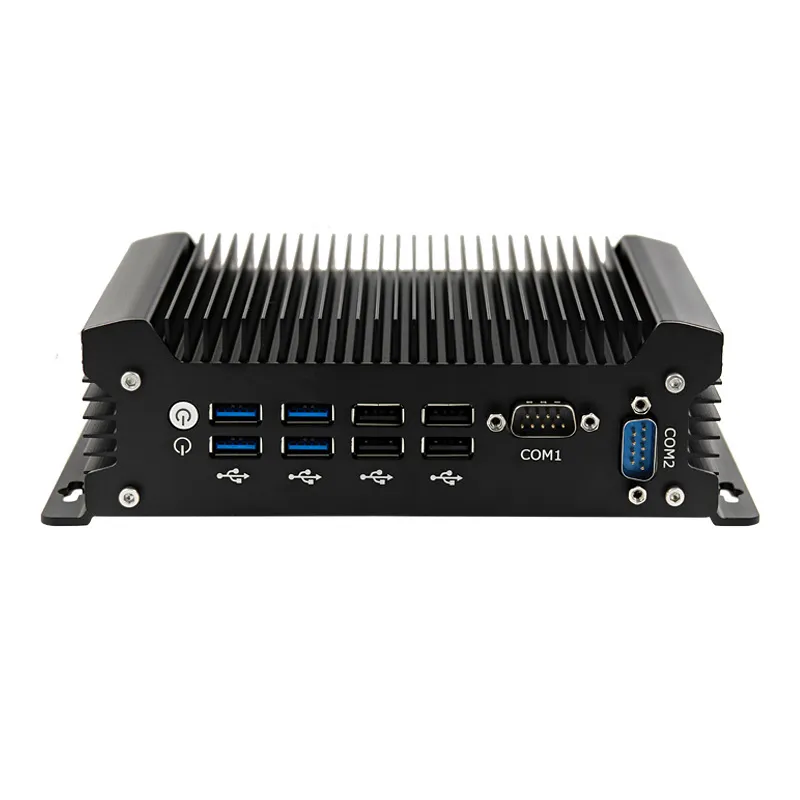

| Model | No. | BOX-300 |
|
Basic |
Motherboard | Intel I3/I5/I7 4/5/6/7/8/10th gen Motherboard |
| CPU | Intel I3/I5/I7 with 4/5/6/7/8/10th gen | |
| BIOS | AMI 64Mbit Flash ROM | |
| RAM | 4th: 1×SODIMM DDR3L RAM Slot, max. 8GB
6/7/8th: 1×SODIMM DDR4 RAM Slot, max. 16GB 10th: 2×SODIMM DDR4 RAM Slot, max. 32GB |
|
| Storage | 4th: 1×Msata
6/7/8/10th: 1×M.2 2280(support SATA and NVME protocol) 1*2.5″ HDD/SSD |
|
| Graphic | Integrated UHD Graphics 600, support 4K (3840×2160px) display | |
| Network | 2 x GbE RJ45 Realtek 8111H | |
| Audio | Realtek ALC892 | |
| I/O | Lan | 2*RJ45 (Gigabit Ethernet) |
| USB | 4*USB2.0, 4*USB3.0 | |
| Display | 1*HDMI, 1*VGA | |
| WIFI | 1*WiFi module with 2 antennas(Optional) | |
| COM | 2*COM(DB9) | |
| Button | 1*Power Button | |
| Line-out | 1*Audio-out | |
| SIM | 1*SIM Card socket(support 3G/4G module) | |
| Expansion | 1*mini-PCIe(support WiFi) | |
| OS | Operating System | Win10/11, Linux |
| Structure | Dissipation | Fanless luminum alloy case for quick heat dissipation |
| Housing | aluminum alloy | |
| Bracket | VESA bracket | |
| Dimensions |
193.9 x 127 x 57.2mm (WxDxH) |
|
| Weight | 1KG(N.W.) | |
| Power | DC In | DC 12V |
| Temperature
& Humidity |
Working Temp. | -20°C~ 65°C (-4°F~149°F) |
| Storage Temp. | -40°C~ 80°C (-40°F~176°F) | |
| Working Humidity | 10% – 95% @40°C non-condensing | |
| Environment | Safety | CE,FCC,RoHS |
| Package | Items | pc, power adapter, Power cord, CD Driver, VESA Bracket & 2 Antennas(Optional) |
