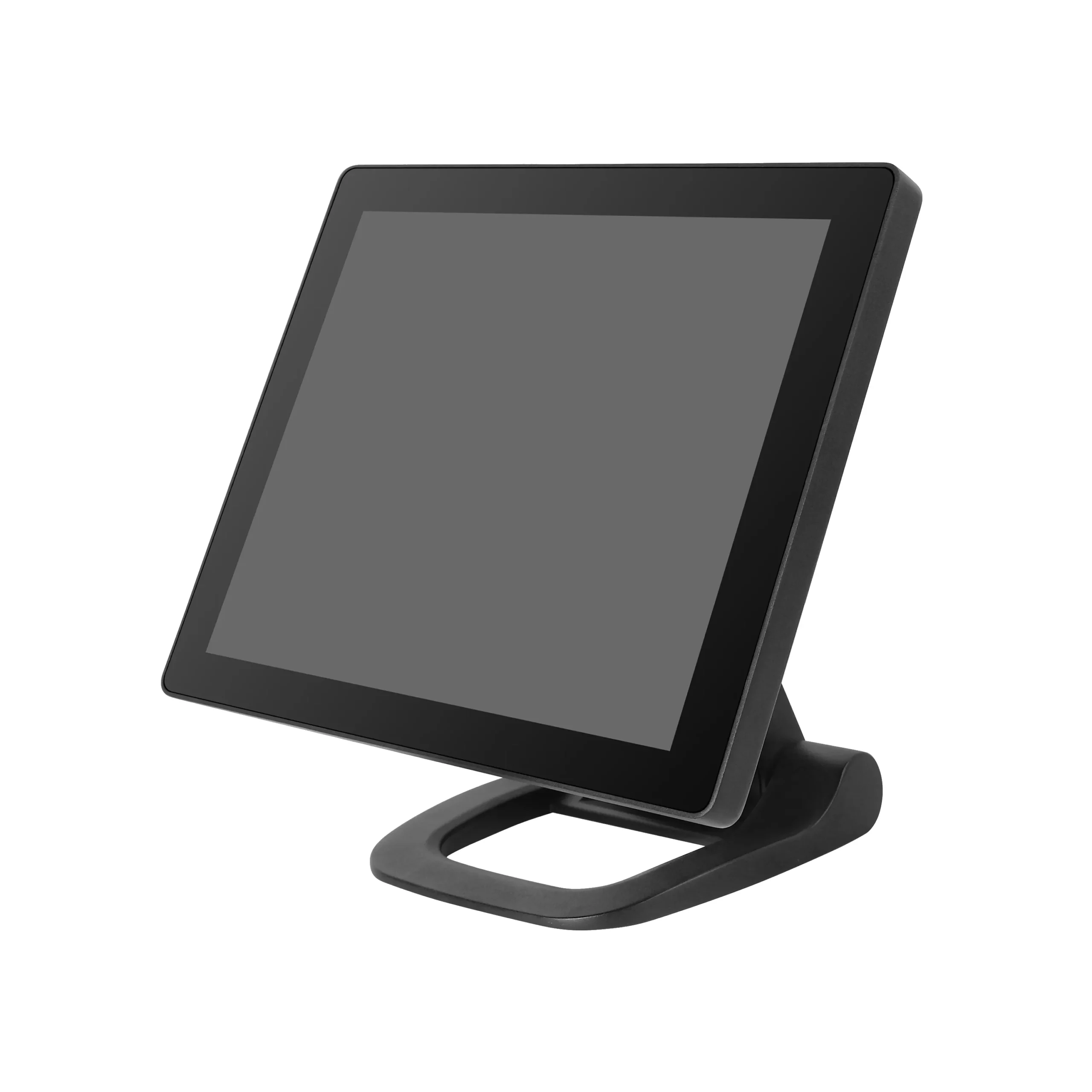

15" POS Terminal JST-150C

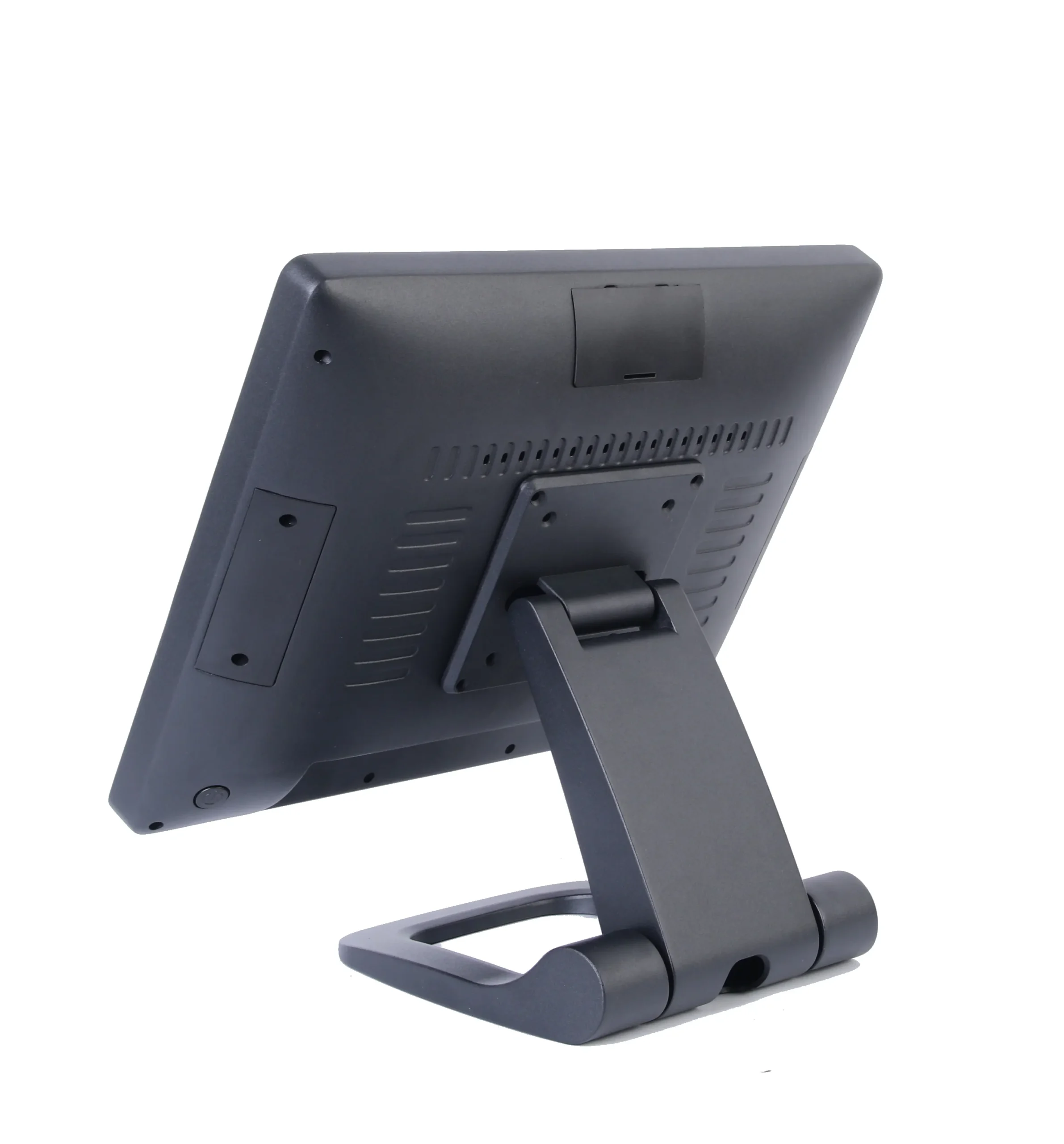

15" POS Terminal JST-150C - Image 2

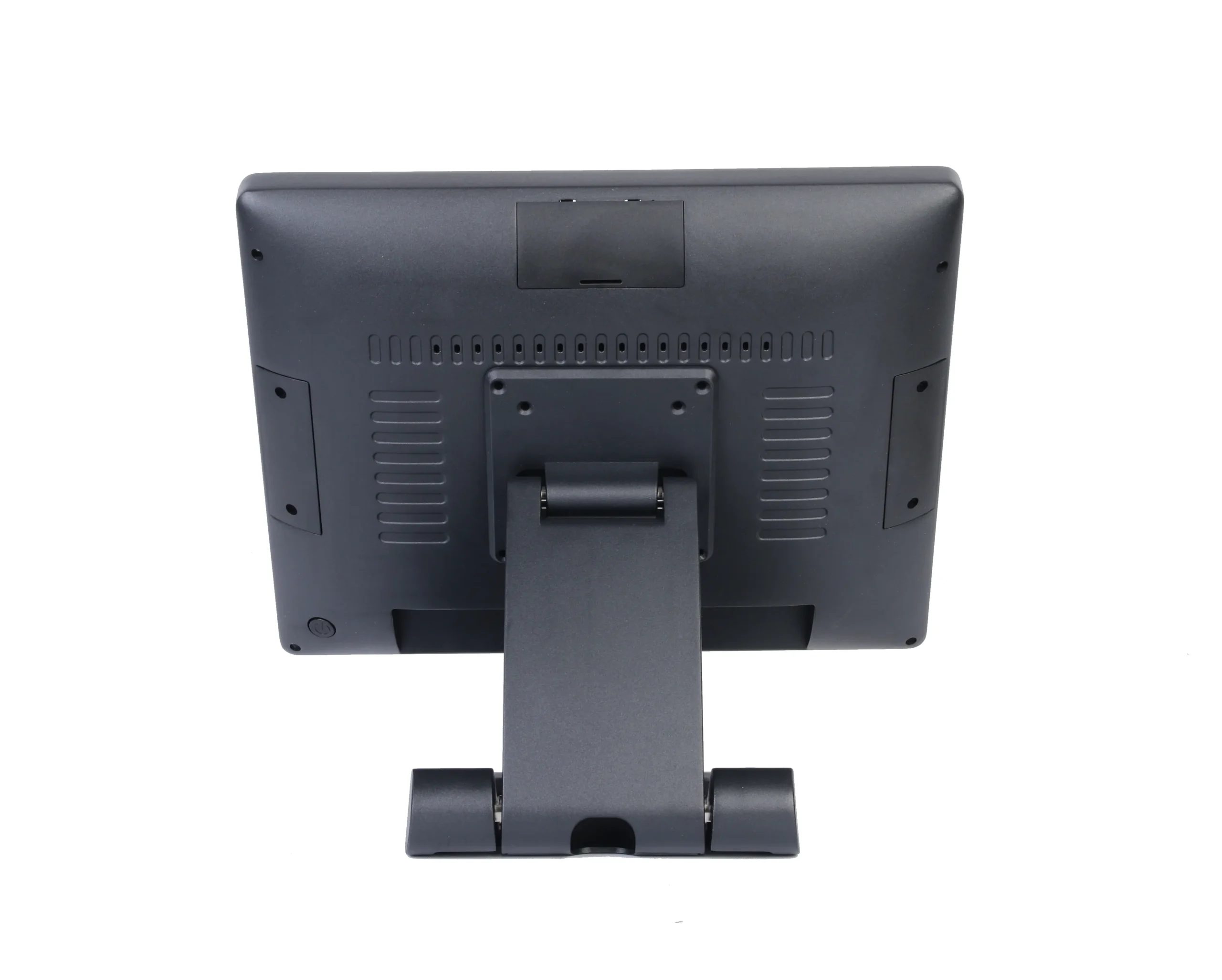

15" POS Terminal JST-150C - Image 3

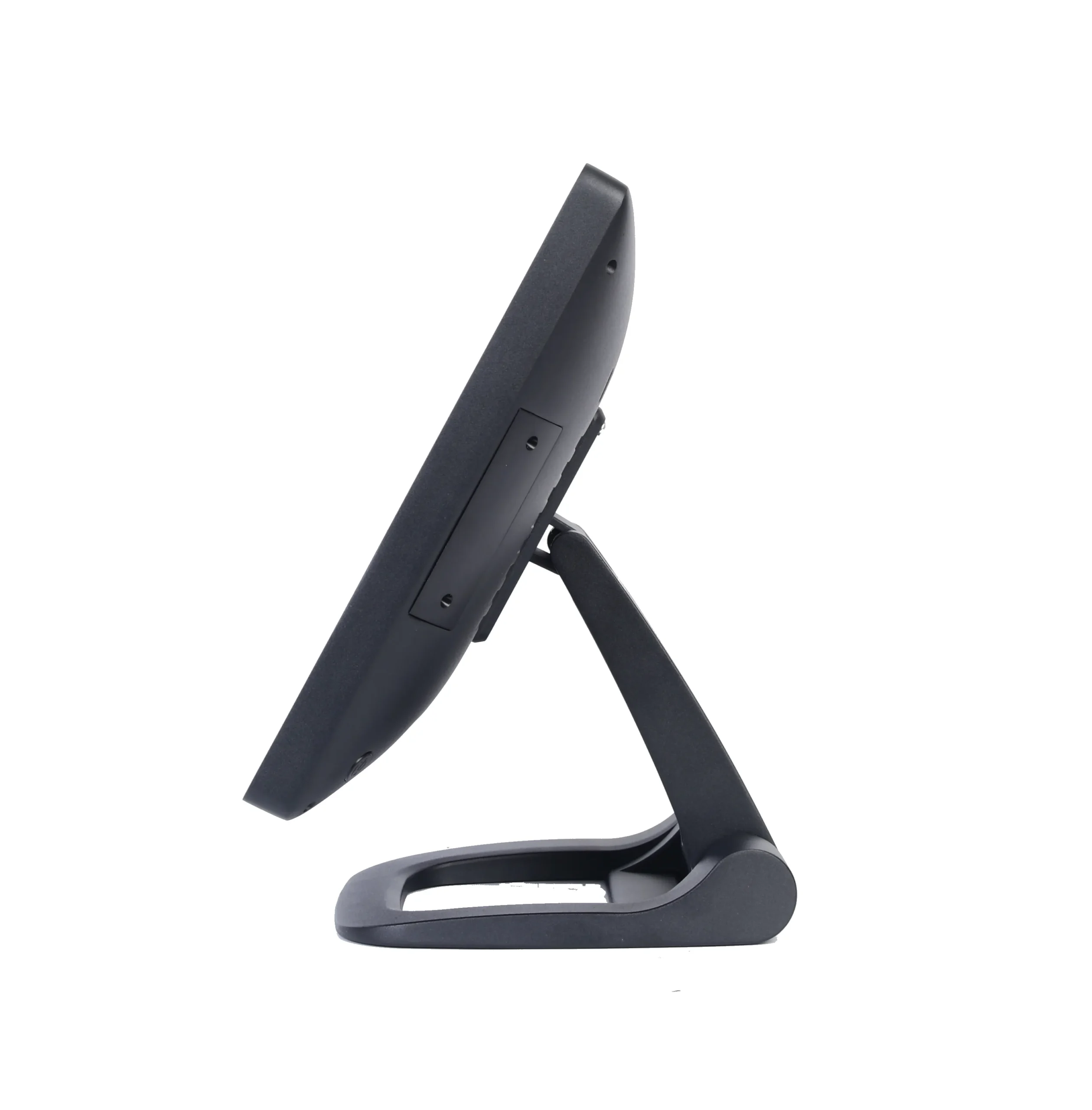

15" POS Terminal JST-150C - Image 4

JST-150D is a high-performance high-end all in one 15″ POS Terminal , With the full aluminum housing and base for the POS, it is very stable and elegant.Equipped with the latest cpu Celeron J4125 , it is also compatible for I3 and I5 CPU.In addition, the I/O interface is generously configured so that various functions can be implemented.It is optimized for the user environment of various retail, restaurant, and franchise industries.

Product Features:

1, Full aluminum alloy die-casting housing for better heat dissipation

2,  Compatible processor intel Celeron J4125&Core I3/I5

3, Foldable base for shipping cost saving in transportation

4, Modular design for easy installations

5, Cable hiden design for neat desktop

6, VFD220, 9.7″  customer display optional

Model Number JST-150C
CPU Support J4125/J6412 I3/I5 4th/5th/6th/8th/10th/11th gen
Intel® Celeron® Processor J4125 /J6412 (4M Cache, up to 2.70 GHz) Intel® Core™ i3/i5  Processor
System Memory DDR4, SO-DIMM x 1, 4GB (Max. 16GB) DDR4,  4GB (Max. 16GB/32GB)
Storage M.2 SSD64GB(Max. 256GB) M-SATA SSD128GB(Max. 1TB)
LCD Size 15″ TFT LED LCD Panel
Brightness 250cd/m2 (Typ.)
Resolution 1024*768
Touch Screen 15″ True-Flat Projected Capacitive Touch
External I/O Port Rear 2 x USB 3.0 +4 x USB 2.0 Ports
1 x COM (DB9)
1 x VGA
1 x LAN (10/100/1000)
1 x Mic-In/Speaker-out (Combo Jack)
1 x DC In
1 x Power Switch
1 x Mini PCIe slot
Power External power adapter, 12V5A
EMC Safety CE, FCC
Environment Operating Temperature 0°C ~ 40°C
Storage Temperature  -20°C ~ 70°C
Operating Humidity 20% – 90% RH non condensing
Storage Humidity 20% – 90% RH non condensing
OS Support Windows10
Dimension (W x D x H)
Weight (N.W./G.W.)
Optional Customer  display 9.7″(1024*768)/12.1″ (1280*800)/15″
MSR Support 1/2/3 track
Ibutton Dallas I-button reader
Package Size(single) 430mm*210mm*420mm/8KG
Package Size(9.7/12.1″/15″) 430mm*290mm*420mm/9.3&9.7&10.7KG
